Changing Server Certificates

This chapter covers how to replace OpenDJ key pairs and public key certificates. In this chapter you will learn to:

Replace a key pair for securing a connection handler
Replace a key pair used for replication

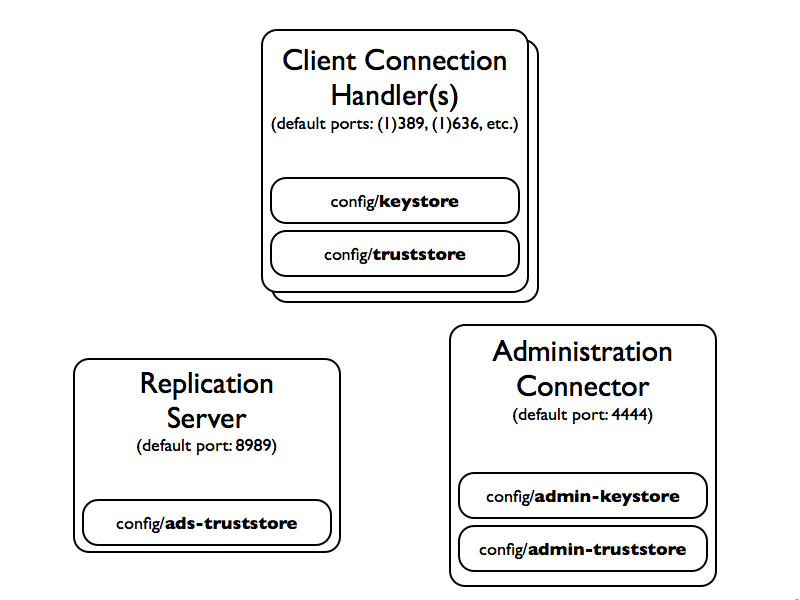

OpenDJ uses keystores (for private keys) and truststores (for public, signed certificates). Up to three sets of keystores are used, as shown in the following illustration.

By default the keystores are located in the /path/to/opendj/config directory:

The keystore and truststore hold keys for securing connections with client applications.
The admin-keystore and admin-truststore hold keys for securing administrative connections, such as those used when connecting with the dsconfig command.
The ads-truststore holds keys for securing replication connections with other OpenDJ servers in the replication topology.

Each keystore has a specific purpose:

admin-keystore: This Java Keystore holds the private key and administrative certificate for the server, admin-cert. This key pair is used to protect communications on the administration port. The password, stored in admin-keystore.pin, is also the key password for admin-cert.
admin-truststore: This Java Keystore holds a copy of the administrative certificate, admin-cert. The password is the same as for the admin-keystore, in other words the string in admin-keystore.pin.
ads-truststore: This Java Keystore holds public key certificates of all servers replicating with the current server. It also includes the ads-certificate key pair of the current server. The password is stored in ads-truststore.pin.

Do not change this keystore directly.
keystore: This Java Keystore holds the private key and server certificate, server-cert, used to protect TLS/SSL communications with client applications. The password, stored in keystore.pin, is also the key password for server-cert.
truststore: This Java Keystore holds a copy of the server-cert certificate from the keystore. This is also where you import certificates of client applications if you want OpenDJ to recognize them. The password is the same as for the keystore, in other words the string in keystore.pin.

Examples in this chapter use self-signed certificates, but you can also use certificates signed by a Certificate Authority (CA).

When importing a certificate (keytool -import) signed by a well-known CA, use the -trustcacerts option to trust the CA certificates delivered with the Java runtime environment.

To Replace a Server Key Pair

This procedure shows how to replace a server key pair in the admin-keystore and copy of the administrative certificate in admin-truststore.

The examples also apply when replacing a key pair in the keystore and copy of the server certificate in truststore. Just adapt the commands to use the correct keystore, truststore, and PIN file names.

This procedure does not apply for replication key pairs. Instead, see "To Replace the Key Pair Used for Replication".

Check the alias of the key pair and certificate copy to replace:

$ cd /path/to/opendj/config
$ keytool -list -keystore admin-keystore -storepass `cat admin-keystore.pin`

Keystore type: JKS
Keystore provider: SUN

Your keystore contains 1 entry

admin-cert, May 20, 2015, PrivateKeyEntry,
Certificate fingerprint (SHA1): 21:9F:F0:E8:A3:22:A3:62:1D:C7:04:BD:12:44:A6:FA:0C:3F:3A:35
$ keytool -list -keystore admin-truststore -storepass `cat admin-keystore.pin`

Keystore type: JKS
Keystore provider: SUN

Your keystore contains 1 entry

admin-cert, May 20, 2015, trustedCertEntry,
Certificate fingerprint (SHA1): 21:9F:F0:E8:A3:22:A3:62:1D:C7:04:BD:12:44:A6:FA:0C:3F:3A:35

This alias is also stored in the server configuration.

Remove the key pair and certificate copy to replace:

$ keytool \
 -delete \
 -alias admin-cert \
 -keystore admin-keystore \
 -storepass `cat admin-keystore.pin`

$ keytool \
 -delete \
 -alias admin-cert \
 -keystore admin-truststore \
 -storepass `cat admin-keystore.pin`

Generate a new key pair in the keystore:
```
$ keytool \
 -genkey \
 -alias admin-cert \
 -keyalg RSA \
 -validity 7300 \
 -keysize 2048 \
 -ext "san=dns:opendj.example.com" \
 -dname "CN=opendj.example.com, O=Administration Connector Self-Signed Certificate" \
 -keystore admin-keystore \
 -storepass `cat admin-keystore.pin` \
 -keypass `cat admin-keystore.pin`
```
Notice that the -alias option takes the same alias as before. This is because the ssl-cert-nickname for the Administration Connector is configured as admin-cert. Also, the -dname option has a CN value corresponding to the fully qualified domain name of the host where OpenDJ directory server is running.
Get the new key pair’s certificate signed, using one of the following alternatives:
- Self-sign the certificate:
  $ keytool \ -selfcert \ -alias admin-cert \ -validity 7300 \ -keystore admin-keystore \ -storepass `cat admin-keystore.pin`
- Create a certificate signing request, have it signed by a CA, and import the signed certificate from the CA reply.

  For examples of the keytool commands to use, see "To Request and Install a CA-Signed Certificate".

Export a copy of the certificate from the keystore:

$ keytool \
 -export \
 -alias admin-cert \
 -keystore admin-keystore \
 -storepass `cat admin-keystore.pin` \
 -file admin-cert.crt
Certificate stored in file <admin-cert.crt>

Import the copy of the certificate into the truststore:

$ keytool \
 -import \
 -alias admin-cert \
 -keystore admin-truststore \
 -storepass `cat admin-keystore.pin` \
 -file admin-cert.crt
Owner: CN=opendj.example.com, O=Administration Connector Self-Signed Certificate
Issuer: CN=opendj.example.com, O=Administration Connector Self-Signed Certificate
Serial number: 4cdd42a
Valid from: Thu May 28 11:32:05 CEST 2015 until: Wed May 23 11:32:05 CEST 2035
Certificate fingerprints:
  MD5:  40:38:24:5D:DD:BE:EC:D6:07:56:08:25:95:D9:61:FE
  SHA1: BC:3D:A9:26:CD:4E:71:04:44:16:1E:A5:79:DA:43:2A:65:E8:85:85
  SHA256: D3:41:EE:44:5A:54:74:11:5A:...:9F:8F:08:13:09:DD:71:52:7E:35:66:7E
  Signature algorithm name: SHA256withRSA
  Version: 3

Extensions:

#1: ObjectId: 2.5.29.17 Criticality=false
SubjectAlternativeName [
  DNSName: opendj.example.com
]

#2: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: 08 E3 D3 62 AA 68 E6 02   52 25 F8 22 C4 43 82 2D  ...b.h..R%.".C.-
0010: 20 C1 39 99                                         .9.
]
]

Trust this certificate? [no]:  yes
Certificate was added to keystore

Restart OpenDJ to make sure it reloads the keystores:
```
$ cd /path/to/opendj/bin
$ stop-ds --restart
```
If you have client applications trusting the self-signed certificate, have them import the new one (admin-cert.crt in this example).

To Replace the Key Pair Used for Replication

Follow these steps to replace the key pair that is used to secure replication connections.

Generate a new key pair for the server.

The changes you perform are replicated across the topology.

OpenDJ has an ads-certificate and private key, which is a local copy of the key pair used to secure replication connections.

To generate the new key pair, you remove the ads-certificate key pair, prompt OpenDJ to generate a new ads-certificate key pair, and then add a copy to the administrative data using the MD5 fingerprint of the certificate to define the RDN.

Delete the ads-certificate entry:

$ ldapmodify \
 --port 1389 \
 --hostname opendj.example.com \
 --bindDN "cn=Directory Manager" \
 --bindPassword password
dn: ds-cfg-key-id=ads-certificate,cn=ads-truststore
changetype: delete

Processing DELETE request for ds-cfg-key-id=ads-certificate,cn=ads-truststore
DELETE operation successful for DN ds-cfg-key-id=ads-certificate,
 cn=ads-truststore

Prompt OpenDJ to generate a new, self-signed ads-certificate key pair.

You do this by adding an ads-certificate entry with object class ds-cfg-self-signed-cert-request:

$ ldapmodify \
 --port 1389 \
 --hostname opendj.example.com \
 --bindDN "cn=Directory Manager" \
 --bindPassword password
dn: ds-cfg-key-id=ads-certificate,cn=ads-truststore
changetype: add
objectclass: ds-cfg-self-signed-cert-request

Processing ADD request for ds-cfg-key-id=ads-certificate,cn=ads-truststore
ADD operation successful for DN ds-cfg-key-id=ads-certificate,cn=ads-truststore

Retrieve the ads-certificate entry:

$ ldapsearch \
 --port 1389 \
 --hostname opendj.example.com \
 --baseDN cn=ads-truststore \
 "(ds-cfg-key-id=ads-certificate)"
dn: ds-cfg-key-id=ads-certificate,cn=ads-truststore
ds-cfg-key-id: ads-certificate
ds-cfg-public-key-certificate;binary:: MIIB6zCCAVSgAwIBAgIEDKSUFjANBgkqhkiG9w0BA
 QUFADA6MRswGQYDVQQKExJPcGVuREogQ2VydGlmaWNhdGUxGzAZBgNVBAMTEm9wZW5hbS5leGFtcGxl
 LmNvbTAeFw0xMzAyMDcxMDMwMzNaFw0zMzAyMDIxMDMwMzNaMDoxGzAZBgNVBAoTEk9wZW5ESiBDZXJ
 0aWZpY2F0ZTEbMBkGA1UEAxMSb3BlbmFtLmV4YW1wbGUuY29tMIGfMA0GCSqGSIb3DQEBAQUAA4GNAD
 CBiQKBgQCfGLAiUOz4sC8CM9T5DPTk9V9ErNC8N59XwBt1aN7UjhQl4/JZZsetubtUrZBLS9cRrnYdZ
 cpFgLQNEmXifS+PdZ0DJkaLNFmd8ZX0spX8++fb4SkkggkmNRmi1fccDQ/DHMlwl7kk884lXummrzcD
 GbZ7p4vnY7y7GmD1vZSP+wIDAQABMA0GCSqGSIb3DQEBBQUAA4GBAJciUzUP8T8A9VV6dQB0SYCNG1o
 7IvpE7jGVZh6KvM0m5sBNX3wPbTVJQNij3TDm8nx6yhi6DUkpiAZfz/OBL5k+WSw80TjpIZ2+klhP1s
 srsST4Um4fHzDZXOXHR6NM83XxZBsR6MazYecL8CiGwnYW2AeBapzbAnGn1J831q1q
objectClass: top
objectClass: ds-cfg-instance-key

Retrieve the MD5 fingerprint of the ads-certificate.

In this example, the MD5 fingerprint is 07:35:80:D8:F3:CE:E1:39:9C:D0:73:DB:6C:FA:CC:1C:

$ keytool \
 -list \
 -v \
 -alias ads-certificate \
 -keystore /path/to/opendj/config/ads-truststore \
 -storepass `cat /path/to/opendj/config/ads-truststore.pin`
Alias name: ads-certificate
Creation date: Feb 7, 2013
Entry type: PrivateKeyEntry
Certificate chain length: 1
Certificate[1]:
Owner: CN=opendj.example.com, O=OpenDJ Certificate
Issuer: CN=opendj.example.com, O=OpenDJ Certificate
Serial number: ca49416
Valid from: Thu Feb 07 11:30:33 CET 2013 until: Wed Feb 02 11:30:33 CET 2033
Certificate fingerprints:
  MD5:  07:35:80:D8:F3:CE:E1:39:9C:D0:73:DB:6C:FA:CC:1C
  SHA1: 56:30:F6:79:AA:C0:BD:61:88:3E:FB:38:38:9D:84:70:0B:E4:43:57
  SHA256: A8:4B:81:EE:30:2A:0C:09:2E:...:C1:41:F5:AB:19:C6:EE:AB:50:64
  Signature algorithm name: SHA1withRSA
  Version: 3

Using the MD5 fingerprint and the certificate entry, prepare LDIF to update cn=admin data with the new server certificate:

$ cat /path/to/update-server-cert.ldif
dn: ds-cfg-key-id=073580D8F3CEE1399CD073DB6CFACC1C,cn=instance keys,
 cn=admin data
changetype: add
ds-cfg-key-id: 073580D8F3CEE1399CD073DB6CFACC1C
ds-cfg-public-key-certificate;binary:: MIIB6zCCAVSgAwIBAgIEDKSUFjANBgkqhkiG9w0BA
 QUFADA6MRswGQYDVQQKExJPcGVuREogQ2VydGlmaWNhdGUxGzAZBgNVBAMTEm9wZW5hbS5leGFtcGxl
 LmNvbTAeFw0xMzAyMDcxMDMwMzNaFw0zMzAyMDIxMDMwMzNaMDoxGzAZBgNVBAoTEk9wZW5ESiBDZXJ
 0aWZpY2F0ZTEbMBkGA1UEAxMSb3BlbmFtLmV4YW1wbGUuY29tMIGfMA0GCSqGSIb3DQEBAQUAA4GNAD
 CBiQKBgQCfGLAiUOz4sC8CM9T5DPTk9V9ErNC8N59XwBt1aN7UjhQl4/JZZsetubtUrZBLS9cRrnYdZ
 cpFgLQNEmXifS+PdZ0DJkaLNFmd8ZX0spX8++fb4SkkggkmNRmi1fccDQ/DHMlwl7kk884lXummrzcD
 GbZ7p4vnY7y7GmD1vZSP+wIDAQABMA0GCSqGSIb3DQEBBQUAA4GBAJciUzUP8T8A9VV6dQB0SYCNG1o
 7IvpE7jGVZh6KvM0m5sBNX3wPbTVJQNij3TDm8nx6yhi6DUkpiAZfz/OBL5k+WSw80TjpIZ2+klhP1s
 srsST4Um4fHzDZXOXHR6NM83XxZBsR6MazYecL8CiGwnYW2AeBapzbAnGn1J831q1q
objectClass: top
objectClass: ds-cfg-instance-key

dn: cn=opendj.example.com:4444,cn=Servers,cn=admin data
changetype: modify
replace: ds-cfg-key-id
ds-cfg-key-id: 073580D8F3CEE1399CD073DB6CFACC1C

Update the administrative data, causing OpenDJ to create a copy of the new ads-certificate with its MD5 signature as the alias in the ads-truststore:

$ ldapmodify \
 --port 1389 \
 --hostname opendj.example.com \
 --bindDN "cn=Directory Manager" \
 --bindPassword password \
 --filename /path/to/update-server-cert.ldif
Processing ADD request for ds-cfg-key-id=073580D8F3CEE1399CD073DB6CFACC1C,
 cn=instance keys,cn=admin data
ADD operation successful for DN ds-cfg-key-id=073580D8F3CEE1399CD073DB6CFACC1C,
 cn=instance keys,cn=admin data
Processing MODIFY request for cn=opendj.example.com:4444,cn=Servers,
 cn=admin data
MODIFY operation successful for DN cn=opendj.example.com:4444,cn=Servers,
 cn=admin data

Force OpenDJ to reopen replication connections using the new key pair.

Stop replication temporarily and then start it again as described in "Configuring Replication":

$ dsconfig \
 set-synchronization-provider-prop \
 --port 4444 \
 --hostname opendj.example.com \
 --bindDN "cn=Directory Manager" \
 --bindPassword password \
 --provider-name "Multimaster Synchronization" \
 --set enabled:false \
 --no-prompt

$ dsconfig \
 set-synchronization-provider-prop \
 --port 4444 \
 --hostname opendj.example.com \
 --bindDN "cn=Directory Manager" \
 --bindPassword password \
 --provider-name "Multimaster Synchronization" \
 --set enabled:true \
 --no-prompt
